Use GPAW on macOS in 2025 (1)
Install GPAW on macOS and run basic DFT calculations
Foreword
GPAW is a Python package to perform first-principles calculations of molecules and extended systems. It has implementations in both plane-wave and atomic orbitals and provides tools to compute various properties of materials, including the basic self-consistent-field (SCF) calculation, structure optimization, etc.
Back to 2018 and 2019 I wrote a series of GPAW tutorials to teach myself, along with an introductory talk on how to use the code for computing electronic band structure and optical properties. I have not used it since the paper1 with results out of that practice was published. Recently I need to quickly perform some plane-wave calculations as reference for those with atomic basis. With no access to the VASP code, I reminded myself of GPAW my old buddy.
A few years have passed and it is now 2025. Things have changed since then, among which the most relevant may be that the Intel compiler toolchain, on which my old tutorial is based, is no longer available on my MacBook Pro with Silicon chip. GPAW has also been actively developed, so it would be better to refresh and update myself by going through the steps. Here I take down some notes on installation following the latest documentation of customized installation and running basic examples.
Download and install
To compile the C code base of GPAW with MPI support, a MPI compiler and OpenBLAS/ScaLAPACK libraries are required. For MPI implementation, I use MPICH from homebrew. Their installation has been discussed in my post on installing FHI-aims on macOS Sonoma. Besides, the Libxc library is also installed via homebrew
1
brew install libxc
It can also be installed later in the Python environment as will be mentioned below, but since Libxc is quite common and may be used for other projects, I prefer to have it somewhere globally.
Then create a Python environment dedicated to GPAW, e.g., using micromamba, and install a few dependencies
1
2
3
micromamba create -n env-gpaw python==3.12.8
micromamba activate env-gpaw
micromamba install matplotlib numpy scipy ase
Download the GPAW source code by checking out a recent tag
1
2
3
4
5
mkdir -p ~/.gpaw
cd ~/software
git clone -b 25.7.0 https://gitlab.com/gpaw/gpaw.git
cd gpaw
cp siteconfig_example.py ~/.gpaw/siteconfig.py
siteconfig.py is for specifying dependencies and compiler flags. The following works with the prerequisites as installed above
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
# vim ~/.gpaw/siteconfig.py
compiler = 'mpicc'
libraries = []
# Math
libraries += ['blas']
scalapack = True
# Enable advanced IntelMKL specific scalapack functions (pzgeevx)
# intelmkl = True
if scalapack:
library_dirs += ["/opt/packages/scalapack/2.2.0/gcc-13.4.0-mpich-4.3.0-openblas",]
libraries += ['scalapack']
# - dynamic linking of Libxc (requires rpath or setting LD_LIBRARY_PATH at runtime):
libxc = True
if libxc:
xc = "/opt/homebrew/Cellar/libxc/7.0.0/"
include_dirs += [xc + 'include']
library_dirs += [xc + 'lib']
runtime_library_dirs += [xc + 'lib']
if 'xc' not in libraries:
libraries.append('xc')
# Enable OpenMP
extra_compile_args += ['-fopenmp']
extra_link_args += ['-fopenmp']
Then install by runnning
1
pip install .
After GPAW is successfully built, serial and parallel tests can be run with gpaw test. It will also show build options and depencencies.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
$ gpaw test
-------------------------------------------------------------------------------------------------------------------------
| python-3.12.8 /Users/minyez/micromamba/envs/env-gpaw/bin/python3.12 |
| gpaw-25.7.0-9de644511e /Users/minyez/software/gpaw/gpaw/ |
| ase-3.26.0 /Users/minyez/micromamba/envs/env-gpaw/lib/python3.12/site-packages/ase/ |
| numpy-2.3.2 /Users/minyez/micromamba/envs/env-gpaw/lib/python3.12/site-packages/numpy/ |
| scipy-1.16.1 /Users/minyez/micromamba/envs/env-gpaw/lib/python3.12/site-packages/scipy/ |
| gpaw_data-1.0.1 /Users/minyez/micromamba/envs/env-gpaw/lib/python3.12/site-packages/gpaw_data/ |
| libxc-7.0.0 yes |
| _gpaw-9de644511e /Users/minyez/micromamba/envs/env-gpaw/lib/python3.12/site-packages/_gpaw.cpython-312-darwin.so |
| MPI enabled yes |
| OpenMP enabled yes |
| GPU enabled no |
| GPU-aware MPI no |
| cupy-fake /Users/minyez/software/gpaw/gpaw/gpu/cpupy/__init__.py |
| MAGMA no |
| scalapack yes |
| Elpa no |
| FFTW no |
| libvdwxc no |
| PAW-datasets (1) /Users/minyez/micromamba/envs/env-gpaw/lib/python3.12/site-packages/gpaw_data/setups |
-------------------------------------------------------------------------------------------------------------------------
Doing a test calculation (cores: 1): ... Done
$ gpaw -P 4 test
# ...
Doing a test calculation (cores: 4): ... Done
Quick example: silicon band structure
Step 1: perform a ground state SCF calculation. Prepare script gs.py as below
1
2
3
4
5
6
7
8
9
10
11
12
13
from ase.build import bulk
from gpaw import GPAW, PW, FermiDirac
si = bulk('Si', 'diamond', a=5.43)
calc = GPAW(mode=PW(200),
xc='PBE',
kpts={'size': (8, 8, 8), 'gamma': True},
random=True, occupations=FermiDirac(0.01), txt='Si_gs.txt')
si.calc = calc
si.get_potential_energy()
# Save converged results
calc.write('Si_gs.gpw')
Then issue
1
mpirun -np 4 gpaw python gs.py
The computation log is saved to Si_gs.txt and data including converged eigenvalues, occupation numbers and eigenvectors are saved in Si_gs.gpw

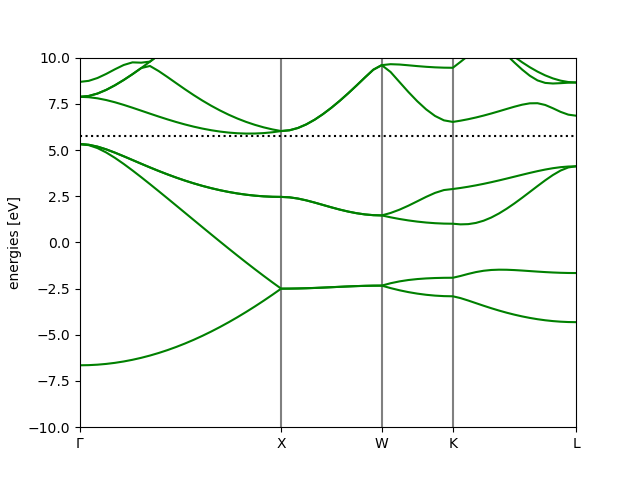

Step 2: perform non-self-consistent band structure calculation with a specified band path using converged SCF data, bs.py. Run the same command for this script (mpirun -np 4 gpaw python bs.py). The band structure will be plotted and saved to Si_bs.png (see Figure 1).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
from gpaw import GPAW
calc = GPAW('Si_gs.gpw').fixed_density(
nbands=16, symmetry='off',
kpts={'path': 'GXWKL', 'npoints': 60},
convergence={'bands': 8}, txt='Si_bs.txt')
calc.get_potential_energy()
calc.write('Si_bs.gpw')
bs = calc.band_structure()
print(type(bs)) # <class 'ase.spectrum.band_structure.BandStructure'>
# show set to False to avoid opening multiple matplotlib instance with mpirun
ax = bs.plot(show=False, emax=10.0, filename="Si_bs.png")
Figure 1: Silicon band structure
While BandStructure.plot is handy to get a quick look at the results, an alternative and fundamental way is to access the raw data saved in Si_bs.gpw.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
#!/usr/bin/env python3
from gpaw import GPAW
import numpy as np
import matplotlib.pyplot as plt
plt.rcParams["font.size"] = 20
c = GPAW('Si_bs.gpw')
bs = c.band_structure()
# Band energies
eigens = bs.energies # shape (1, 60, 16)
# equivalent to
eigens = np.array([[c.get_eigenvalues(ik, isp)
for ik, _ in enumerate(c.get_ibz_k_points())]
for isp in range(c.get_number_of_spins())])
efermi = c.get_fermi_level()
# Occupation numbers
occs = np.array([[c.get_occupation_numbers(ik, isp)
for ik, _ in enumerate(c.get_ibz_k_points())]
for isp in range(c.get_number_of_spins())])
# normalize to [0, 2] for non-spin-polarized case
occs *= len(c.get_bz_k_points())
# k-path information: 1D coordinates and symbols of special points
x, x_spec, symbol_spec = bs.path.get_linear_kpoint_axis()
print(symbol_spec) # ['G', 'X', 'W', 'K', 'L']
# Customized plot
fig, ax = plt.subplots(1, 1, figsize=(7, 7))
ax.plot(x, eigens[0, :, :] - efermi, color="b")
ax.set_xlim(xmin=x[0], xmax=x[-1])
ax.set_ylim(ymin=-5, ymax=5)
ax.set_ylabel("Energy [eV]")
ax.axhline(0.0, color='k', linestyle=':', lw=2)
ax.xaxis.set_ticks(x_spec, symbol_spec, fontsize=18)
ax.xaxis.grid()
fn = "Si_bs_manual.png"
fig.savefig(fn,
dpi=300,
bbox_inches='tight',
pad_inches=0.1)

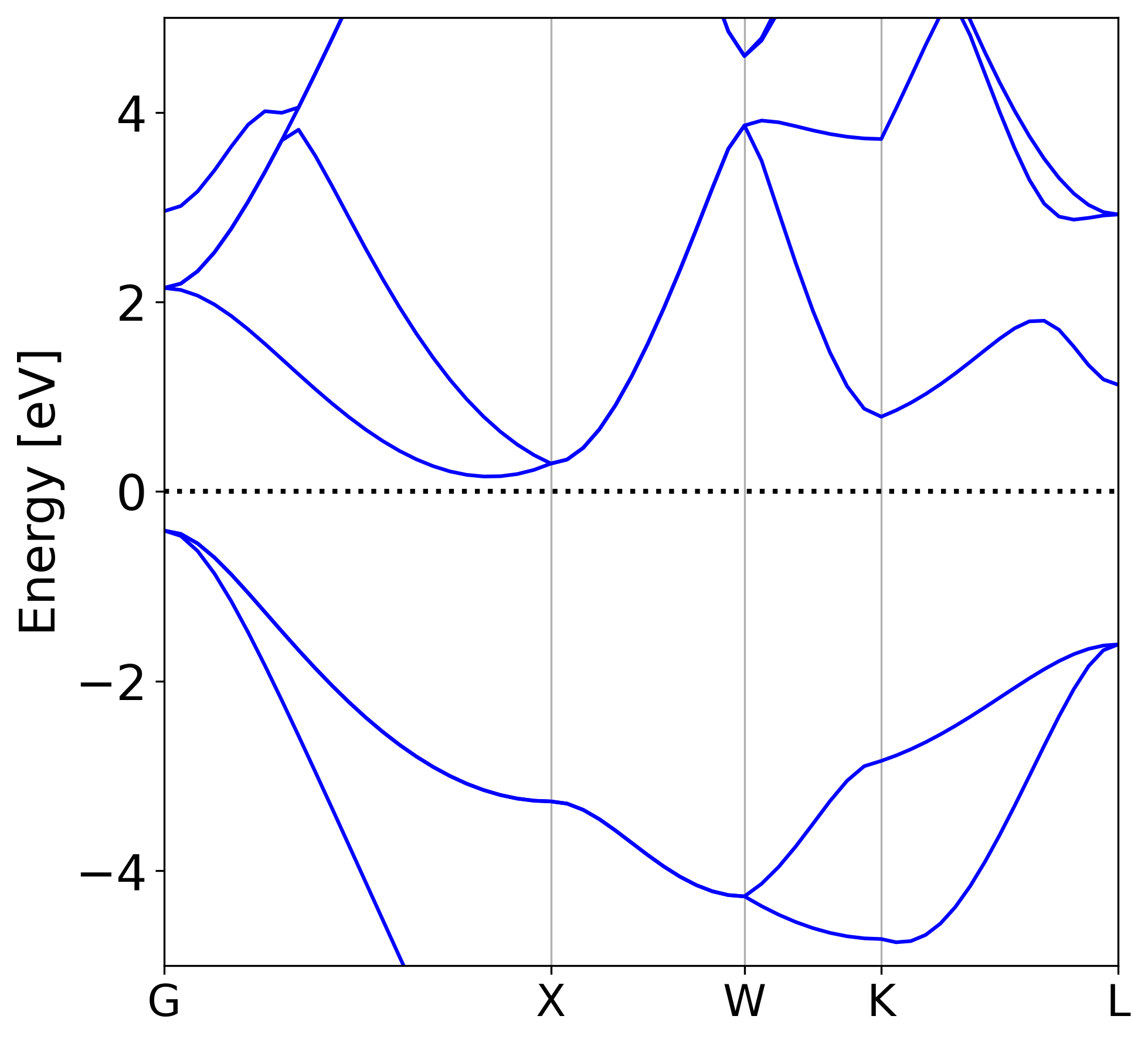

The above script uses Fermi level as reference energy zero, and generates band structure plot as Figure 2.
Figure 2: Silicon band structure without using BandStructure.plot method
Afterword
I do not know if there would be (2). It is interesting to see that most parts of my old tutorials work, which indicates the stability of GPAW APIs. Thus it may be of help to review and share them here.
M. Zeng, et al. Bandgap Tuning of Two-Dimensional Materials by Sphere Diameter Engineering, Nature Mater. 19, 528 (2020). ↩︎
